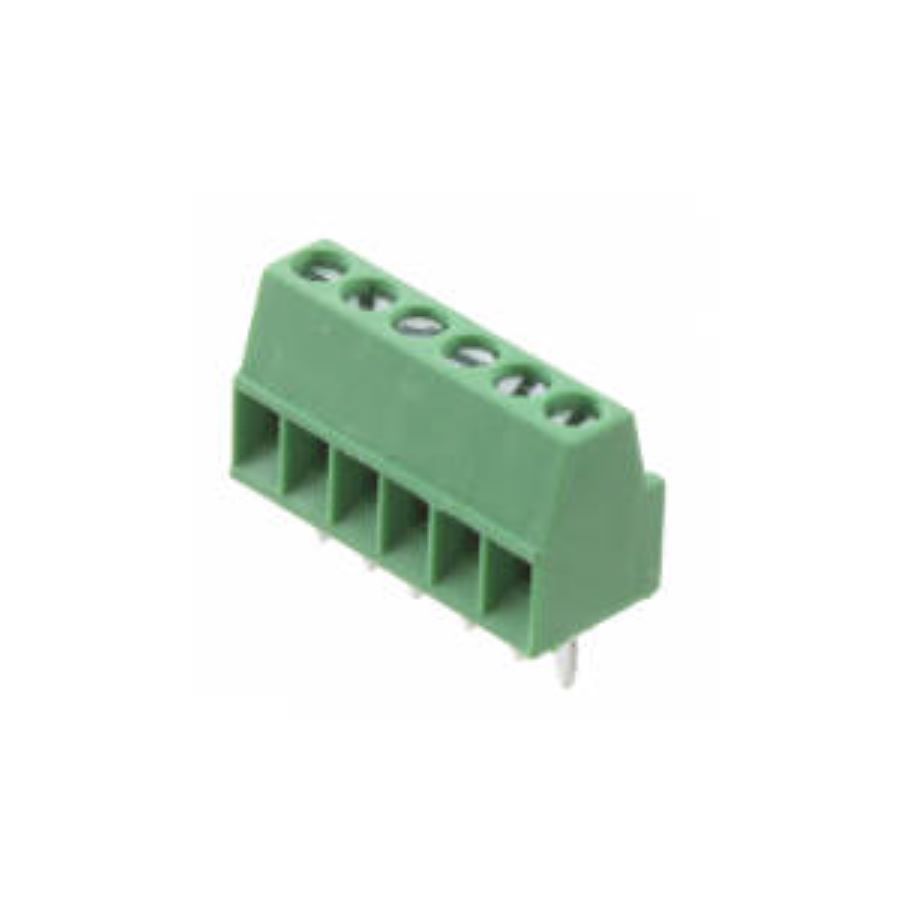

OSTVN06A150
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTVN06A150
Datasheet:
Description:
Terminal Blocks Through Hole 6 2.54 mm 6 A 125 V 30 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 6 |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| RoHS | Compliant |
| Voltage | 125 V |
| Contact Plating | Brass |
| Pitch | 2.54 mm |
| Current | 6 A |
| Current Rating | 6 A |
| Orientation | Horizontal with Board |
| Color | Green |
| Number of Positions | 6 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 6 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 20 AWG |
| Plating | Brass, Steel |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 20 AWG |
Stock: 1382
Distributors
pcbx
pcbxUnit Price$1.47003
Ext.Price$1.47003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.47003 | $1.47003 |
| 10 | $1.05550 | $10.55500 |
| 25 | $0.92045 | $23.01125 |
| 50 | $0.83411 | $41.70550 |
| 100 | $0.76154 | $76.15400 |
| 300 | $0.69810 | $209.43000 |
| 500 | $0.63995 | $319.97500 |
| 1000 | $0.60414 | $604.14000 |
| 3000 | $0.57541 | $1726.23000 |
| 5000 | $0.54804 | $2740.20000 |
